Google Workspace Integration

This guide walks you through how to configure SAML-based Single Sign-On (SSO) between Google Workspace and Fixiam using the pre-integrated Google Workspace app available in IAM.

---

✅ Prerequisites

1. You have admin access to both Google Workspace and Fixiam.
2. The domain used in Google Workspace must be verified.

---

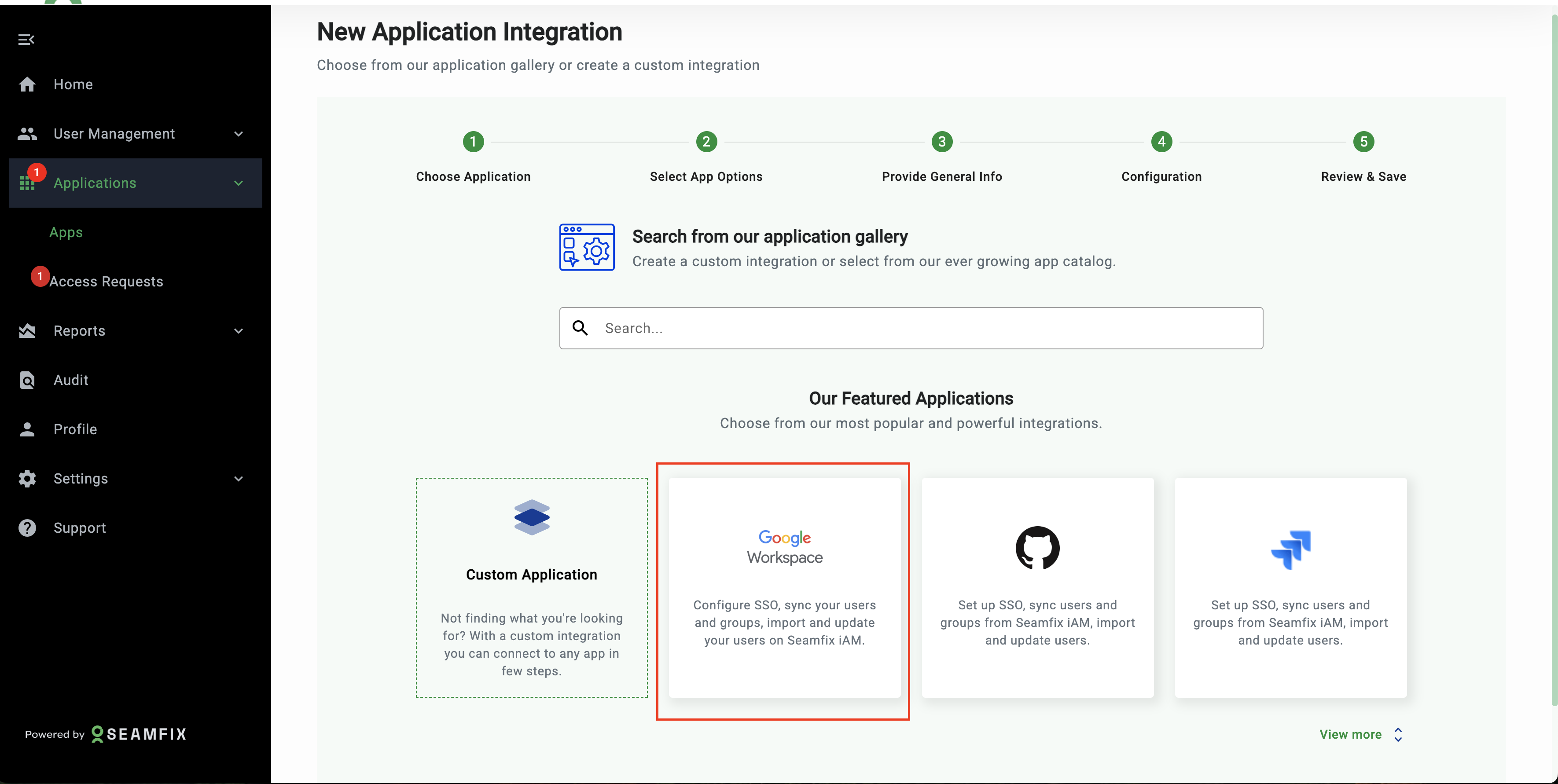

Step 1: Start from Fixiam

1. Log into Fixiam
2. Go to Applications > Apps
3. Click Add New Application
4. From the app list, find Google Workspace (pre-integrated)
5. Click on it to open the application page

Step 2: Export Metadata from Fixiam

Once the Google Workspace application is open:

1. Go to the Configuration page
2. Click Export Metadata
3. This will open the XML metadata in a new browser tab

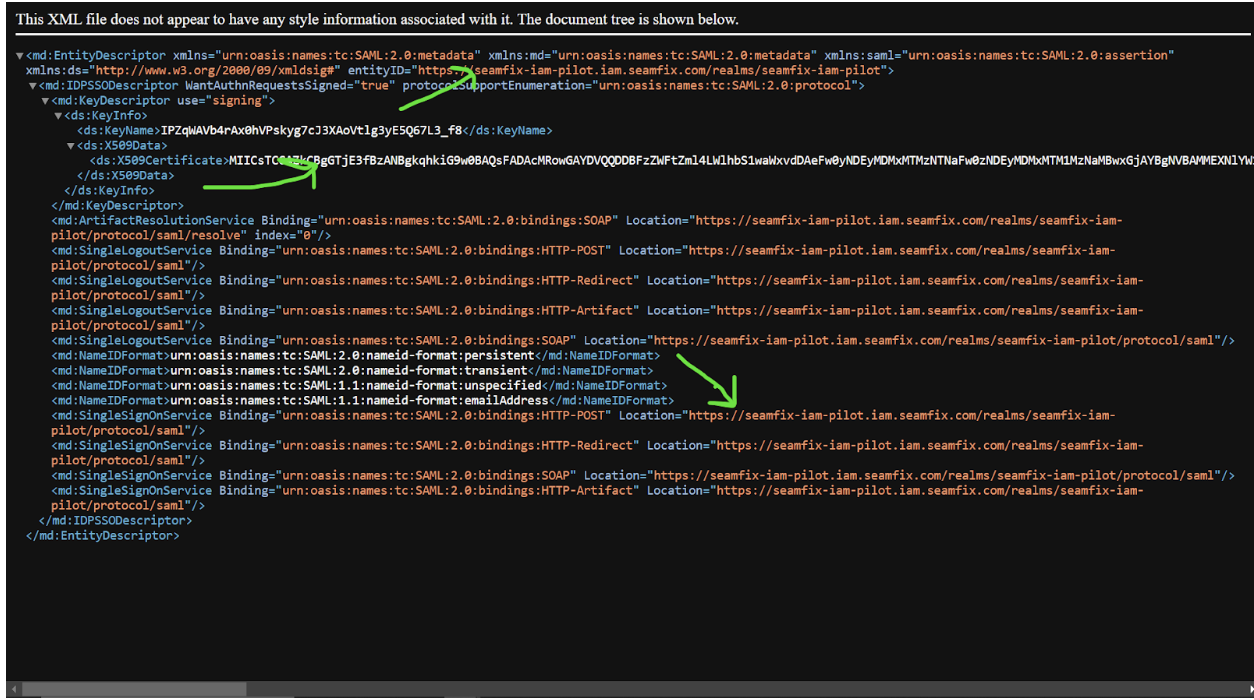

   1. From the metadata:
      1. Locate entityID="..." → Copy this as the IDP Entity ID
      2. Locate <md:SingleSignOnService Location="..." → Copy the Sign-In Page URL
      3. Locate the value inside <ds:X509Certificate> → This is your certificate

Step 3: Configure SAML in Google Workspace

1. Go to Google Workspace Dashboard

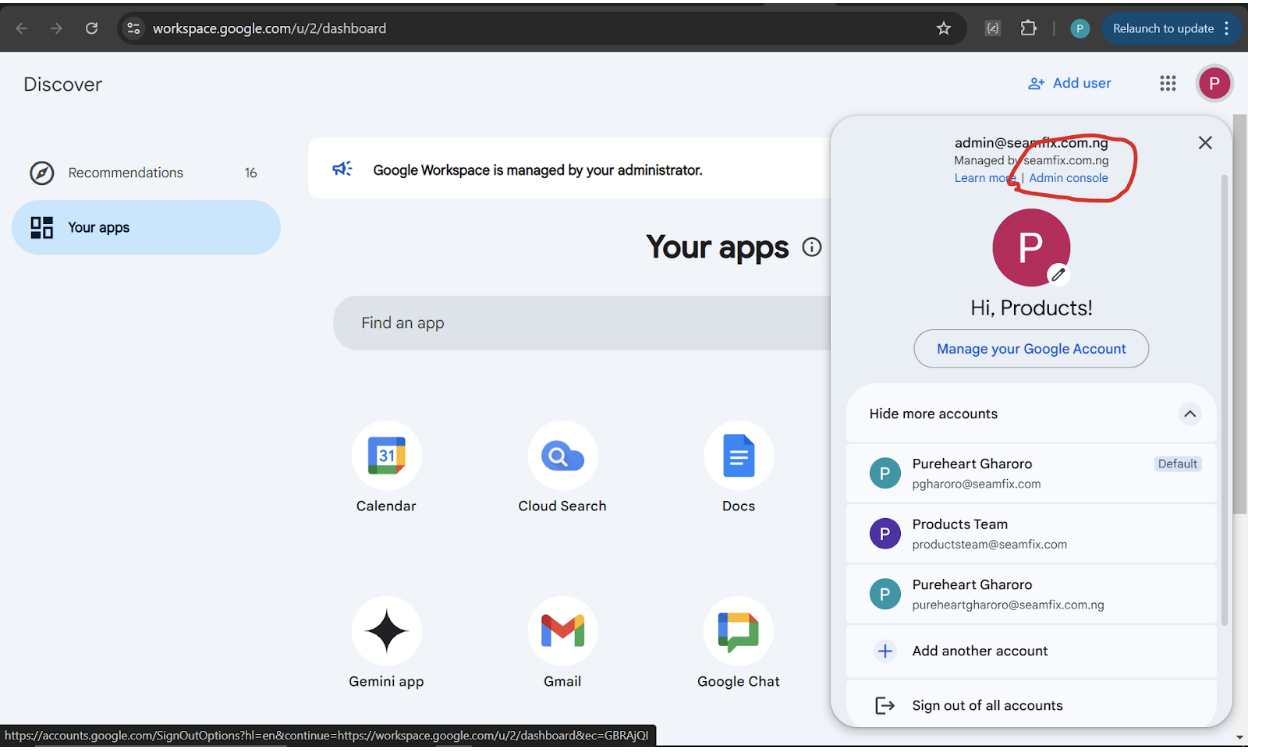

2. Click your profile photo → Select Admin Console

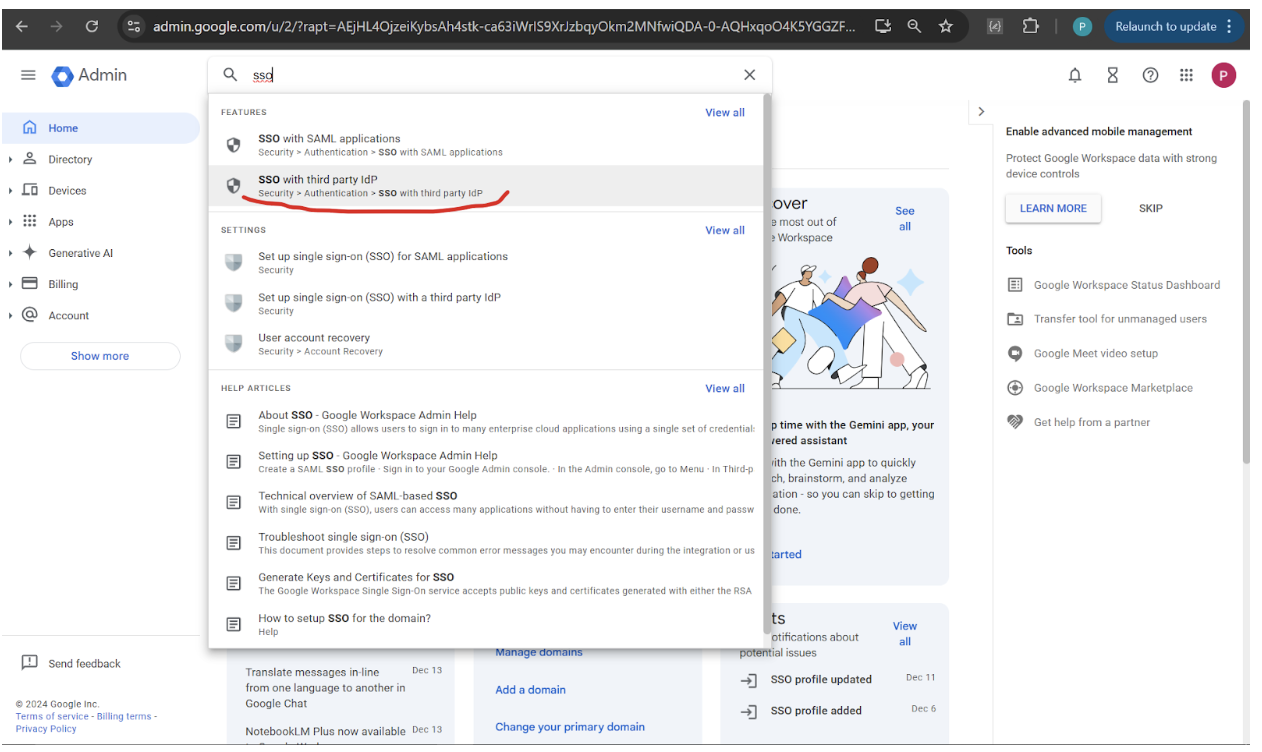

3. In the Admin Console, locate the search bar at the top, type SSO
4. Select SSO with third-party IDP

Step 4: Add a New SAML Profile

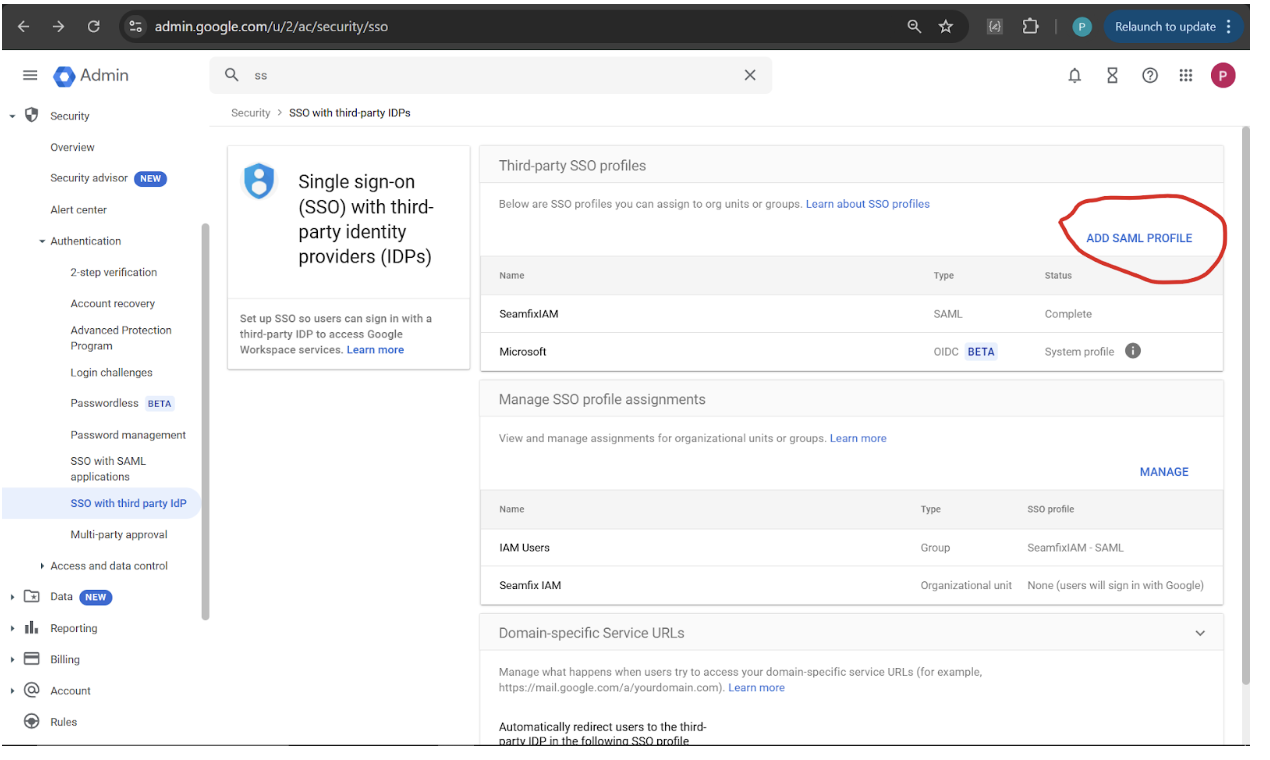

On the SSO with third-party IDP page, click on Add SAML Profile.

1. Fill out the form with the following details:
   1. SSO Profile Name: Fixiam IDP Entity ID: obtain this from the Fixiam metadata exported as completed in step 2 Sign-in Page URLobtain this from the Fixiam metadata exported as completed in step 2 Sign-out Page URL: Leave this blank Change Password URL: Leave this blank Upload the Certificate File:
      • Use the copied X.509 Certificate value from Fixiam
      • Create a text file (e.g., cert.pem) and paste the certificate inside
      • Upload this file here
2. Click Save

Step 5: Retrieve Google Entity ID and ACS URL

1. After saving, you’ll be redirected to a new page
2. From that page, copy the following:
   1. Entity ID
   2. ACS URL (Assertion Consumer Service URL)

📌 You will use these to complete the configuration in Fixiam

Step 6: Complete Configuration in Fixiam

1. Go back to the Google Workspace app configuration page in Fixiam
2. Enter the following:

3. Click Next or Save to complete configuration

Step 6: Create Group in Google Workspace

1. Go to Directory > Groups > Create Group
2. Enter:
   1. Group Name:Fixiam SSO Users
   2. Group Email:Use admin or service email
3. Click Save

Step 7: Add Users to Group

1. Open the newly created group
2. Add users who should log in via Fixiam as members

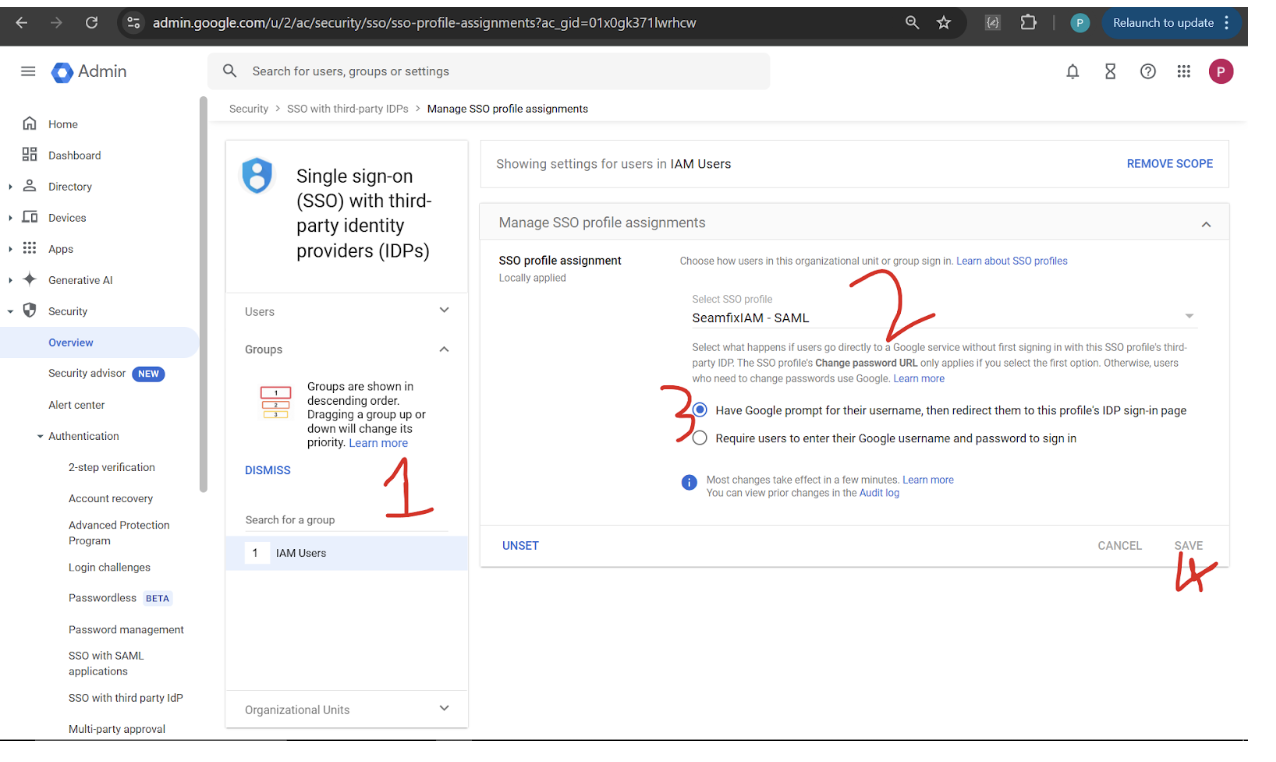

Step 8: Assign SSO Profile to the Group

1. Go back to SSO with third-party IDP in Google Admin Console
2. Click Manage under SSO Profile Assignments
3. Set the following:
   1. Group :Fixiam SSO Users
   2. SSO Profile: Fixiam
   3. Login Option: Allow users to enter Google username and be redirected to Fixiam
4. Click Save

Step 9: Test the SSO Login

1. Go to a Google Workspace service (e.g., Gmail, Docs)
2. Try logging in with a user that belongs to the assigned group
3. If successful:
   1. User is redirected to Fixiam
   2. After login, they are redirected back to Google Workspace

---

🎉 All Done!

You’ve successfully integrated Google Workspace with Fixiam using SAML SSO. Users can now enjoy secure, IAM-managed access across Google tools.
